Build your fixture
Outrigger Wall Display Combo – Melamine Shelves
The Outrigger Wall Display Combo with Melamine Shelves combines shelving, front-facing displays and hanging space in one adjustable retail wall system.

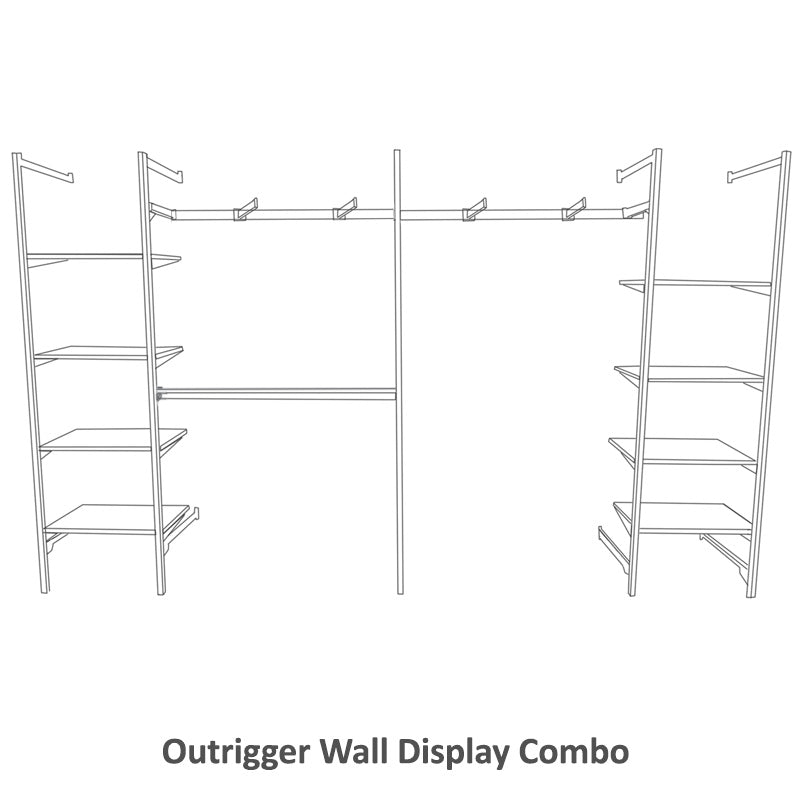

Based on the sketch shown, this configuration uses five 84" chrome outriggers, four 12" × 24" maple melamine shelves at each end, four straight faceouts along the upper rail, and a lower hanging rail in the left-center section.
Components for the layout shown
| Qty | Product | SKU |
|---|---|---|
| 5 | 84″ Outrigger – Chrome | 31001CH |
| 8 | 12″ × 24″ Melamine Shelf – Maple | 85024MP |
| 16 | 12″ Shelf Bracket with Screw – Chrome | 33028CH |
| 5 | 3″ Rectangular Bar Holder – Chrome | 33062CH |
| 1 | 8ft Rectangular Tubing – Chrome | 50008CH |
| 1 | 4ft Rectangular Tubing – Chrome | 50004CH |
| 4 | End Cap for Rectangular Tubing – Chrome | 55003CH |
| 4 | 12″ Faceout for Rectangular Tubing – Chrome | 53102CH |
The five outriggers include ten 14.5" wall mounts in total. Each melamine shelf uses two chrome shelf brackets with screws. The upper 8ft rail uses three bar holders; the lower 4ft rail uses two. Four end caps finish the exposed rail ends.
Customize your display
Quantities are preset to match this configuration and can be adjusted below. Each component is added to your cart as its own product at its current price and availability.
Shelves: 12" deep × 24" wide, maple melamine. Other shelf finishes are available on the Wood Melamine Shelf product page.
Layout: approximately 12ft wide, using 84" tall outriggers. The supplied sketch is illustrative; confirm post spacing and suitable wall mounting before installation.
