Build your fixture
Heavy Duty Wall Display Combo – Black Melamine Shelves
The Heavy Duty Wall Display Combo with Black Melamine Shelves combines front-facing merchandise, hanging space and shelving in one adjustable retail wall layout.

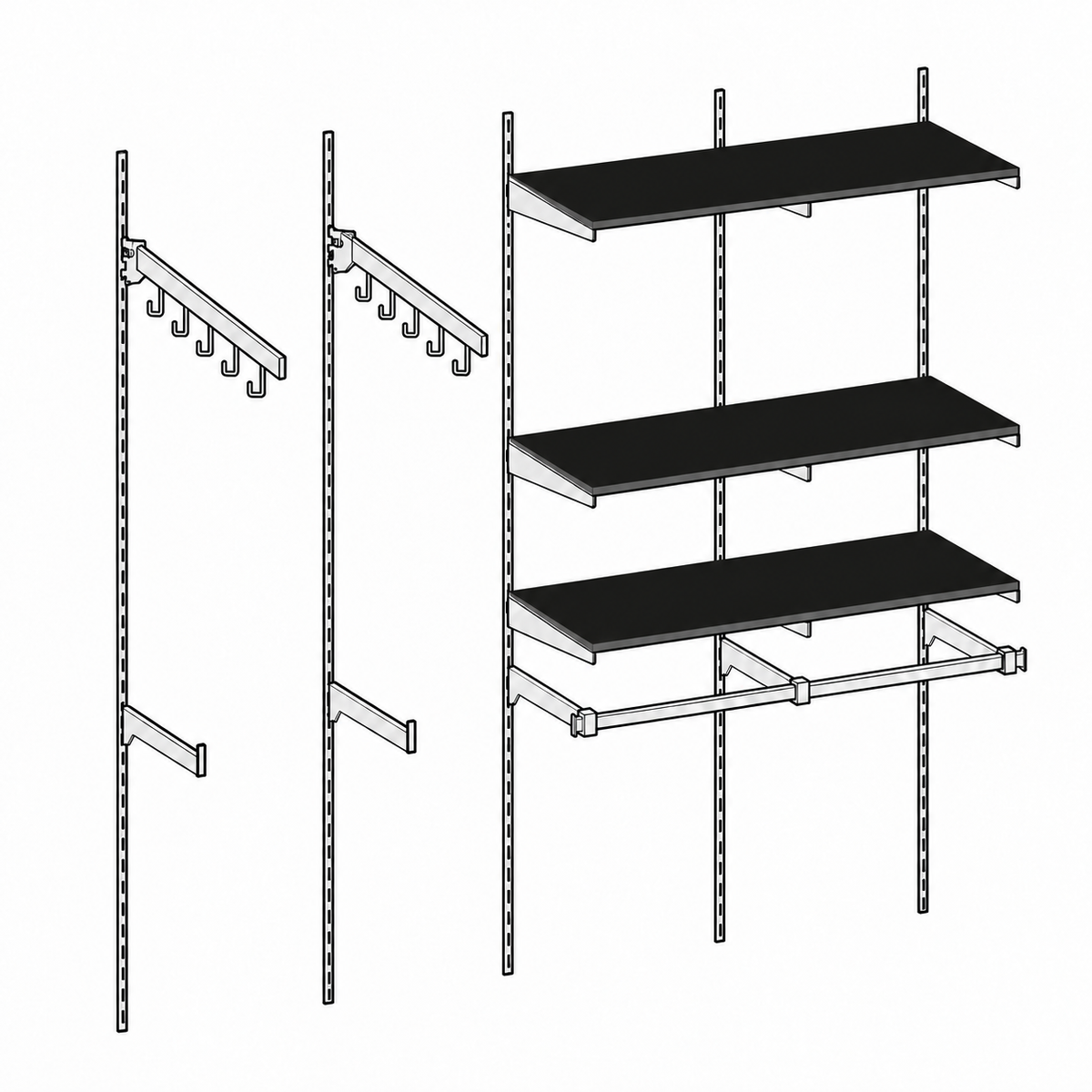

Built around five 7ft chrome Heavy Duty Wall Standards, the configuration shown includes two 33107CH five-hook waterfalls at the upper left, two straight faceouts below, three 12" × 48" black melamine shelves at the right, and a rectangular hanging rail beneath the shelves.
Components for the layout shown
| Qty | Product | SKU |
|---|---|---|
| 5 | 7ft Heavy Duty Wall Standard – Chrome | 30007CH |
| 2 | 5 Hook Rectangular Tube Waterfall – Chrome | 33107CH |
| 2 | 12″ Rectangular Tube Faceout – Chrome | 33102CH |
| 3 | 12″ × 48″ Melamine Shelf – Black | 85048BL |
| 9 | 12″ Shelf Bracket with Screw – Chrome | 33028CH |
| 3 | 12″ Rectangular Bar Holder – Chrome | 33060CH |
| 1 | 4ft Rectangular Tubing – Chrome | 50004CH |
| 2 | Rectangular Tubing End Cap – Chrome | 55003CH |
Each shelf uses three chrome shelf brackets with screws, providing left, center and right support. The 4ft hanging rail uses three 12" bar holders and two end caps.
Customize your wall display
Quantities are preset to match the drawing. Adjust the quantities below to suit your store. Each selected component is added to your cart as its own product using its current price and availability.
Shelves: black melamine, 12" deep × 48" long. Standards: chrome, 7ft long, universal 1/2" slots on 1" centers. The drawing is illustrative; confirm mounting locations, spacing and suitable wall fasteners before installation.
